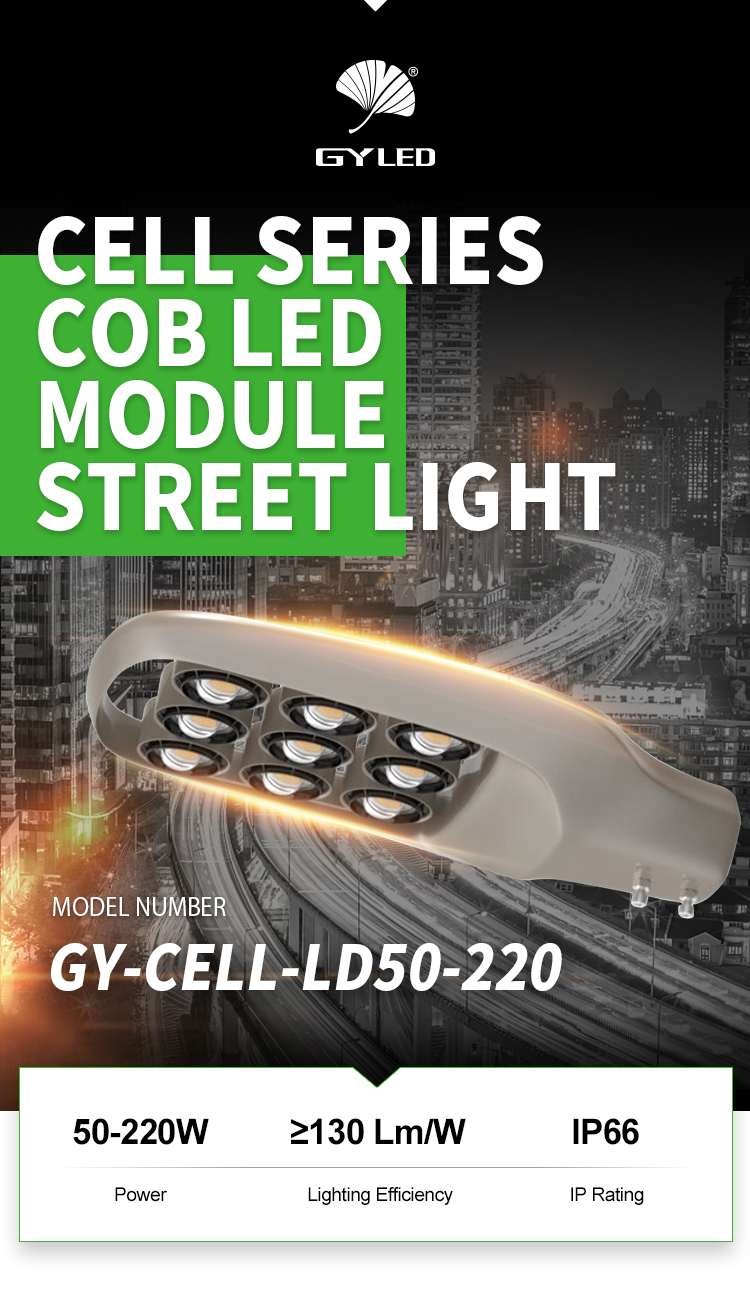

Hot sale high power 150W 200W 220W cree led street light fixtures waterproof
| Model No. | GY-CELL-5528LD50 | GY-CELL-5528LD100 |
| Number of Modules | 2 | 4 |
| Module Type | COB LED CHIPS |
| Rated Power (W) | 50W | 100W |
| Input Voltage(V) | AC100-240/277V/50-60Hz |
| Power Factor | ≥0.95 |
| Nominal Lumen Output (Lm) | ≥6500Lm | ≥13000Lm |
| Luminous Efficiency (lm/w) | ≥130Lm/W |
| Color Temperature(CCT) | 3000K～5700K |
| CRI (Ra) | Ra70 |
| Pole Connector Size (mm) | Ø48～60mm |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Working Temperature (℃) | -40～+50℃ |
| Surface Finish | Anti-corrosion powder coating |
| Lamp Size | 552*282*105mm |
| Net Weight | 4.1Kg | 5.4Kg |
| Packing Size | 605*340*160mm |
| Packing Quantity | 1 unit |
| Optional Spare Parts | Photocells, Surge Protection Device, Pole Adapter |
| Model No. | GY-CELL-6741LD150 | GY-CELL-6741LD200/220 |
| Number of Modules | 6 | 9 |
| Module Type | COB LED CHIPS |
| Rated Power (W) | 150Watt | 200/220Watt |
| Input Voltage(V) | AC100-240/277V/50-60Hz |
| Power Factor | ≥0.95 |
| Nominal Lumen Output (Lm) | ≥19500Lm | ≥28600Lm |
| Luminous Efficiency (lm/w) | ≥130Lm/W |
| Color Temperature (CCT) | 3000K～5700K |
| CRI (Ra) | Ra70 |
| Pole Connector Size (mm) | Ø48～60mm |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Working Temperature (℃) | -40～+50℃ |
| Surface Finish | Anti-corrosion powder coating |
| Lamp Size (mm) | 675*418*111mm |
| Net Weight (Kg) | 8.4Kg | 10.4Kg |
| Packing Size | 730*475*165mm |
| Packing Quantity | 1 unit |
| Optional Spare Parts | Photocells, Surge Protection Device, Pole Adapter |
Production Features:
Angle adjustment: The angle of the lamp module can be pre-adjusted to meet the diversified lighting environment
needs.
Flexible collocation: The lamp can be equipped with COB modules or single array LED modules.
Open cover method: The electric box of lamp use the clasp type open cover method, can open and close by hand, easy
maintenance.
Cover support: When opening the cover, the lamp electrical box is designed with supporting parts, so as to prevent the
lamp cover from automatically closing due to gravity and injuring the construction personnel.
Anti-falling design: The lamp design has an anti-falling chain, and the anti-falling chain can be unfolded install or conceal
install on the lamp pole, use flexible and reliable.
Installation: Fixing the lamp on the lamp pole by two bolts lamp housing, convenient and fast.
Module maintenance: The electrical connection between modules is connected by the plug. The combination of structure,
electrical connection, and waterproof treatment can be completed at one time. Modules can be removed quickly.
Structure design: driver replacement
When the electrical box is opened, there will be a supporting design to prevent the wrong shutdown.
The power can be changed quickly after the electrical box is opened by hand.
